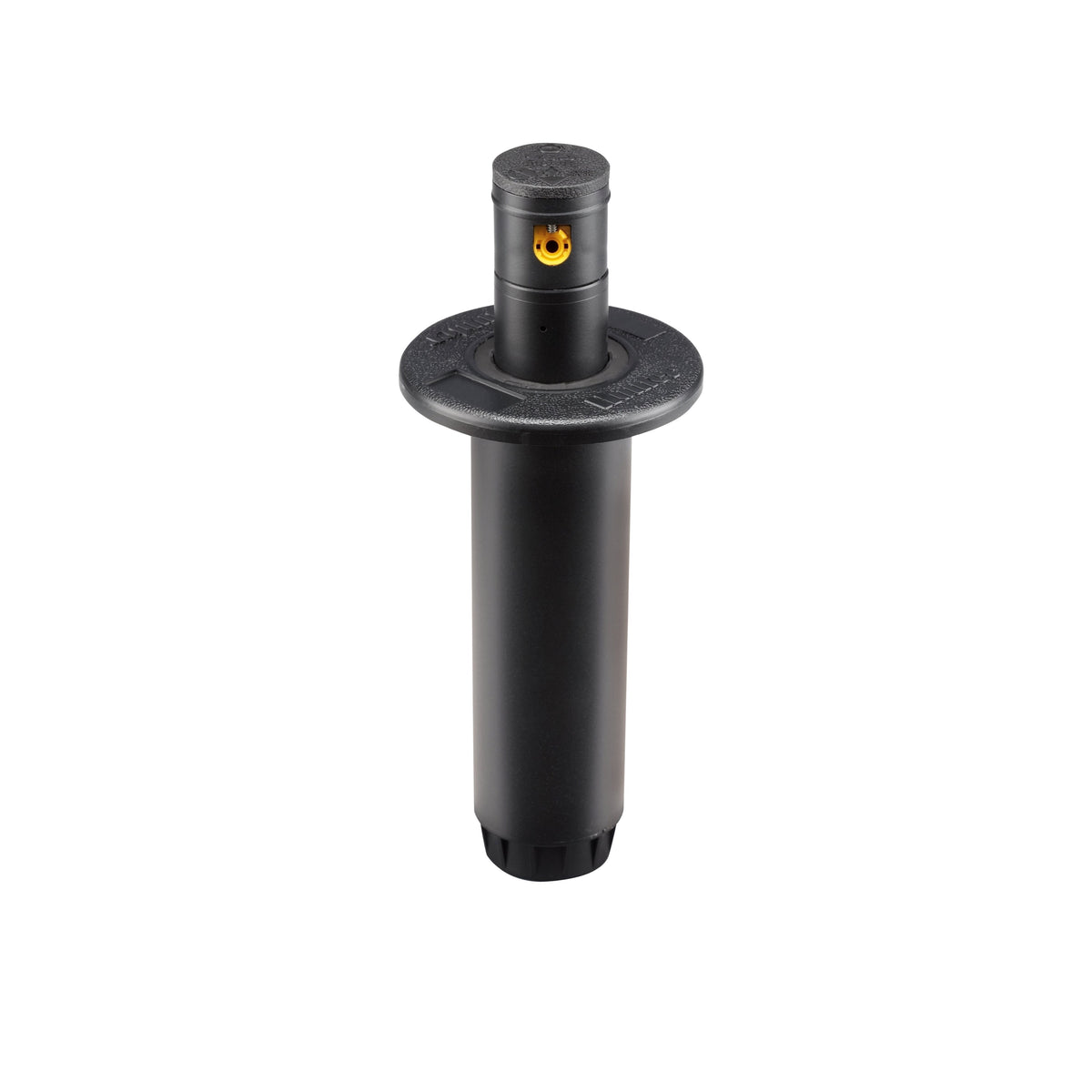

Hunter Golf G35B Rotor 360 Adj Block

Name: Hunter Golf G35B Rotor 360 Adj Block
Brand: Hunter
SKU: TMI - G35B6S
Price: 3460.05 ZAR
Availability: InStock

R 3,460.05 ZAR incl. VAT

incl. VAT

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Copy Link

Easy to adjust and maintain, Hunter's G-35 golf and large turf rotor is also the ideal choice for the customer on a budget. The B Series rotors provide all the standard features you want for short and mid-distance coverage including a time-tested gear drive, convenient through-the-top servicing, and a sturdy, impact-resistant flanged body.

KEY BENEFITS

Adjustable arc water lubricated gear-drive
50 to 360 degree adjustable arc range
Arc adjustable anytime; un-installed, installed or while in operation
QuickSet-360 adjustable arc and non-reversing full-circle in one rotor
Quick check arc mechanism makes arc adjust fast and easy
Closed-case design helps prevent sticking riser and leaking seals
Flexible performance with 8 nozzles to choose from

ADVANCED FEATURES

B SERIES ROTORS ARE YARDAGE MARKER CAPABLE

All B Series rotors have a recessed area on the flange to accommodate installation of custom yardage markers.

QUICKSET-360

With Hunter’s quick check arc mechanism and patented QuickSet-360 non-reversing full-circle feature in a variable arc rotor, adjustments are fast, easy and more flexible than ever before. Available on 35 Series and 75 Series rotors.

Copy Link

G-35-B - SPECIFICATION BUILDER: Order 1 + 2 + 3

1Models

G-35 Full/part-circle 50º–360º

2Valve Options

Block rotor with check valve

3Nozzle Options

SELECT AN OPTION

Copy Link

G-35-B

Pop-up Height: 7.5 cm
Overall Height: 23 cm
Flange Diameter: 12 cm
Female inlet: 1¼" (32 mm) Acme

G-35 PRODUCT CUTSHEET

MODEL SPECIFICATIONS

Full circle/Part circle (50° to 360°)

MODEL VARIATIONS

B = Block checks up to 3 m in elevation change

NOZZLE RANGE

#2 to #12

NOZZLE CHOICE

8 multi trajectory (15 - 25 degrees)

OPERATING SPECIFICATIONS

Discharge rate:0.43 - 2.91 m³/hr, 7.2 - 48.5 l/min
Radius: 5.5 - 15.2 m
Pressure range: 2.8 - 4.5 Bar, 275 - 450 kPa
Pressure rating: 1000 kPa

SPECIFICATION

GOLF ROTORS INSTALLATION DETAILS (DWG)

G35B DIMENSIONS

	G35B
Overall Height	30 cm
Pop-up Height	8 cm
Flange Diameter	18 cm
Inlet Size	1-1/4" Female ACME

G835 / G35B Nozzle Performance Data*

Nozzle	Pressure		Radius	Flow		Precip mm/hr
	bar	kPa	m	m³/hr	l/min
2 • Yellow	2.8	275	5.5	0.43	7.2	14.3	16.6
	3.4	344	6.1	0.48	7.9	12.8	14.8
	4.1	413	6.7	0.55	9.1	12.1	14.0
	4.5	482	7.0	0.59	9.8	12.0	13.9
3 • Yellow	2.8	275	7.0	0.68	11.4	13.9	16.0
	3.4	344	7.6	0.73	21.1	12.5	14.5
	4.1	413	8.2	0.80	13.2	11.7	13.6
	4.5	450	8.5	0.82	13.6	11.2	13.0
4 • Yellow	2.8	275	7.6	0.89	14.8	15.3	17.6
	3.4	344	8.5	0.93	15.5	12.8	14.8
	4.1	413	9.1	1.00	16.7	12.0	13.8
	4.5	450	9.4	1.04	17.4	11.7	13.5
5 • Yellow	2.8	275	8.8	1.07	17.8	13.7	15.8
	3.4	344	9.8	1.14	18.9	11.9	13.8
	4.1	413	10.1	1.20	20.1	11.9	13.7
	4.5	450	10.7	1.23	20.4	10.8	12.4
6 • Yellow	2.8	275	9.8	1.36	22.7	14.3	16.5
	3.4	344	10.7	1.43	23.8	12.6	14.5
	4.1	413	11.3	1.50	25.0	11.8	13.6
	4.5	450	11.9	1.54	25.7	10.9	12.6
8 • Yellow	2.8	275	11.0	1.77	29.5	14.7	17.0
	3.4	344	11.9	1.82	30.3	12.9	14.8
	4.1	413	12.8	1.89	31.4	11.5	13.3
	4.5	450	13.1	1.93	32.2	11.2	13.0
10 • Yellow	2.8	275	11.9	2.20	36.7	15.6	18.0
	3.4	344	13.1	2.29	38.2	13.4	15.4
	4.1	413	13.7	2.34	39.0	12.4	14.4
	4.5	450	14.3	2.39	39.7	11.6	13.4
12 • Yellow	2.8	275	13.4	2.73	45.4	15.2	17.5
	3.4	344	14.3	2.77	46.2	13.5	15.6
	4.1	413	14.6	2.84	47.3	13.3	15.3
	4.5	450	15.2	2.91	48.5	12.5	14.5
Note: *Complies to ASAE standard. All precipitation rates calculated for 360° operation. All triangular rates are equilateral.
