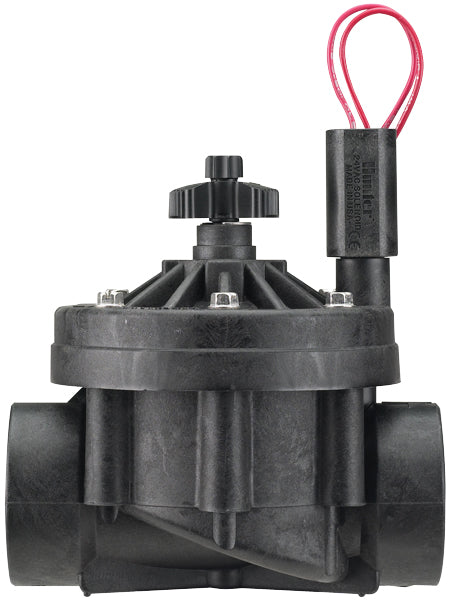

Hunter ICV 50Mm 2" Globe Valve With Flow Control

Name: Hunter ICV 50Mm 2" Globe Valve With Flow Control
Brand: Hunter
SKU: TMI - ICV201GB
Price: 3028.76 ZAR
Availability: InStock

R 3,028.76 ZAR incl. VAT

incl. VAT

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

Hunter ICV 50Mm 2" Globe Valve With Flow Control

In order to create a plastic valve that can consistently operate at 15 bar, Hunter relies on only materials that are both time and contractor proven. Created to handle the wide range of conditions different sites will bring, the ICV valve includes both a fabric reinforced EPDM diaphragm and seat, and flow control as standard features. It can consistently withstand pressures of up to 15 bar while handling the continual hammer that such forces will produce. Plus, it’s exceptionally easy to service, with bonnet bolts that can be loosened and tightened using a variety of common contractor tools. A Filter Sentry™ option is also available for applications that involve dirty water. The Filter Sentry™ system keeps the the valve filter screen free of debris commonly found in non-potable water sources.

KEY BENEFITS

Optional Filter Sentry™ scours the filter screen in dirty water conditions
External/internal manual bleed allows for quick and easy activation at the valve
Glass-filled nylon construction provides high pressure rating and reliability
Double-beaded diaphragm seal design ensures leak-free performance
Fabric-reinforced EPDM diaphragm and seat ensure greater performance in all water conditions
Captive bonnet screws eliminate the possibility of lost parts during disassembly
Triple-tool bonnet screws are compatible with standard or Phillips screwdrivers as well as a nut driver
Encapsulated solenoid with captive plunger used on every Hunter valve provides hassle-free service
Flow control maximises efficiency and prolongs the life of the system

ADVANCED FEATURES

FLOW CONTROL

Maximize efficiency and prolong the life of a system by fine tuning flow and pressure for each zone.

FILTER SENTRY™

Filter Sentry scours the filter clean with a wiper that slides up and covers the entire screen when the valve opens. Even more, the wiper continues to scrub the filter's upper part during valve operation. Filter Sentry can be added after the valve is installed as well.

ACCU SYNC® PRESSURE REGULATION

Avoid sprinkler over-pressure conditions and experience significant water savings with Hunter's Accu Sync pressure regulator. This option is available in adjustable pressure or fixed pressure models.

RECLAIMED WATER IDENTIFICATION

Violet tags and handles are an option for a clear, quick, and simple method of identifying the use of non-potable water.

VALVE MODELS

PGV-101, PGV-100JT, PGV101JT

Reclaimed Water Handle P/N: 269205

PGV-151, PGV-201

Reclaimed Water Handle P/N: 607105

ICV101, ICV151, ICV201

Reclaimed Water Handle P/N: 561205

ICV301

Reclaimed Water Handle P/N: 515005

ICV PRODUCT CUTSHEET

User-Installed Options

Accu Sync™ pressure regulation at the valve*
DC-latching solenoid for battery-powered controllers (P/N 458200)
Filter Sentry easily added to an installed valve
Solenoid conduit cover (P/N 464322)

Factory-Installed Options

LS: Valve without solenoid
DC: DC-latching solenoid for battery-powered controllers
FS: Filter Sentry
FS-R: Reclaimed option with Filter Sentry, purple control knob, and purple chlorine-resistant diaphragm

Operating Specifications

Flow:
- ICV-101G: 0.03 to 9 m3 /hr; 0.4 to 150 l/min
- ICV-151G: 0.03 to 34 m3 /hr; 0.4 to 568 l/min
- ICV-201G: 0.03 to 45 m3 /hr; 0.4 to 757 l/min
- ICV-301: 0.03 to 68 m3 /hr; 0.4 to 1,135 l/min
Recommended pressure range: 1.5 to 15.0 bar; 150 to 1500 kPa
Temperature rating: 66°C
Warranty period: 5 years

Solenoid Specifications
